LED Menorah

Posted: December 4, 2012

Introduction

This is just a simple hannukah menorah circuit made out of an MSP430G2231 microcontroller. The firmware that controls the LED's flicker them so they appear to glow brighter and dimmer. A single push-button is used to select the day. The circuit runs on 3.3v (in my case 2 AA batteries). I'm tempted to leave it running for 8 days to see if by some miracle the 2 AA's will last that long (my calculations tell me not even close) :).

The source code I included below assembles with naken_asm.

Related Projects @mikekohn.net

Artwork: LED Pumpkin Candle, XOR Gate, Motion Eyes, Clay Figures, WS2812 LED, LED Panel, Half Adder, Gingerbread House, Cyborg Chicken, Electric Cat Fight, Iced Electronics

Video

A video of what the menorah would look like on day 8. https://youtu.be/TcMVTJSN0qU

Pictures

Clay menorah

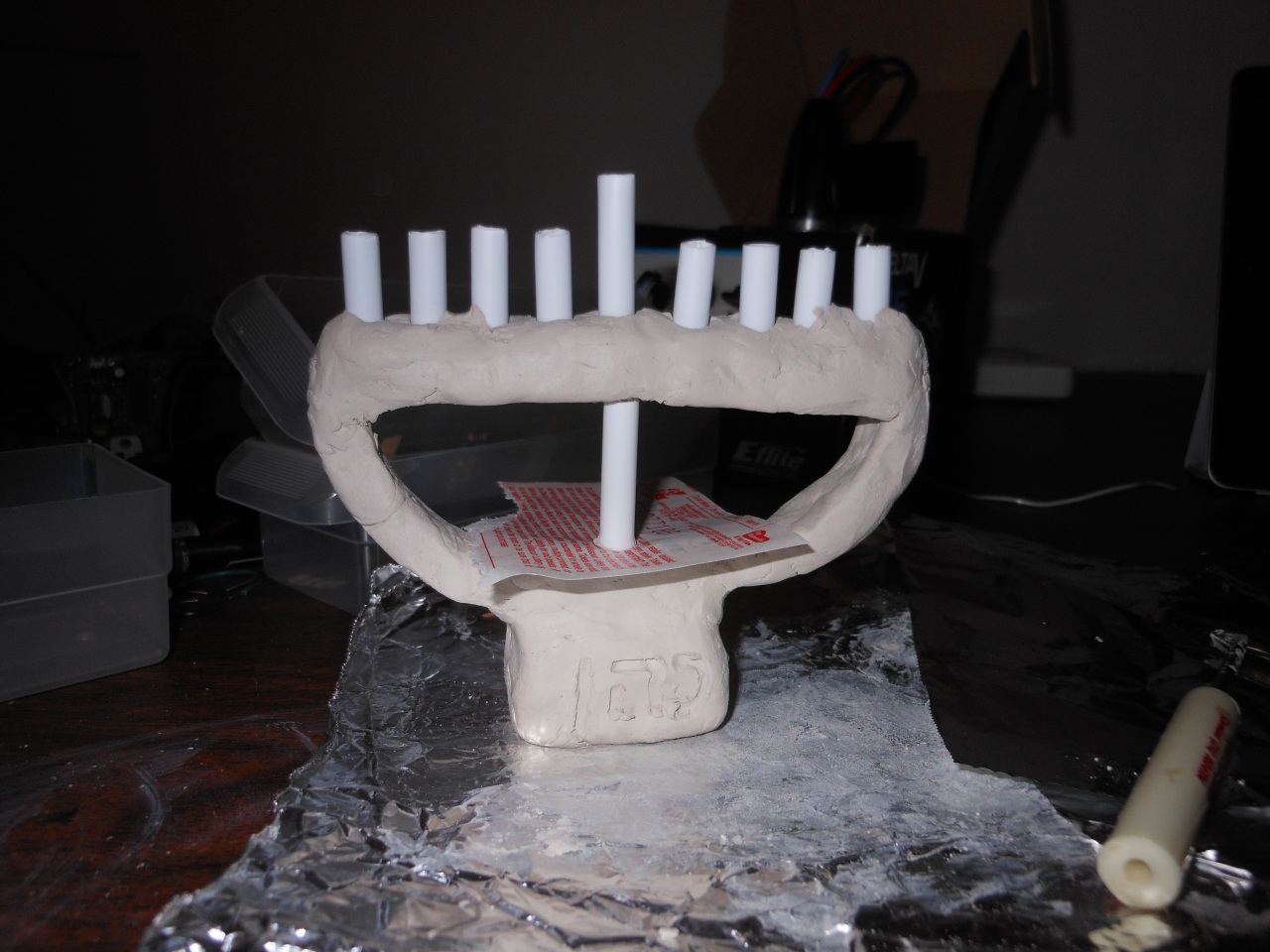

Here's a picture of clay menorah drying. To hold the LED's I used some plastic tubing. Inside the menorah I used some extra tubing (and pat of a losing lottery ticket) to hold it up while it was drying. At the base of the menorah I signed my name in the clay.

Clay menorah with circuit board

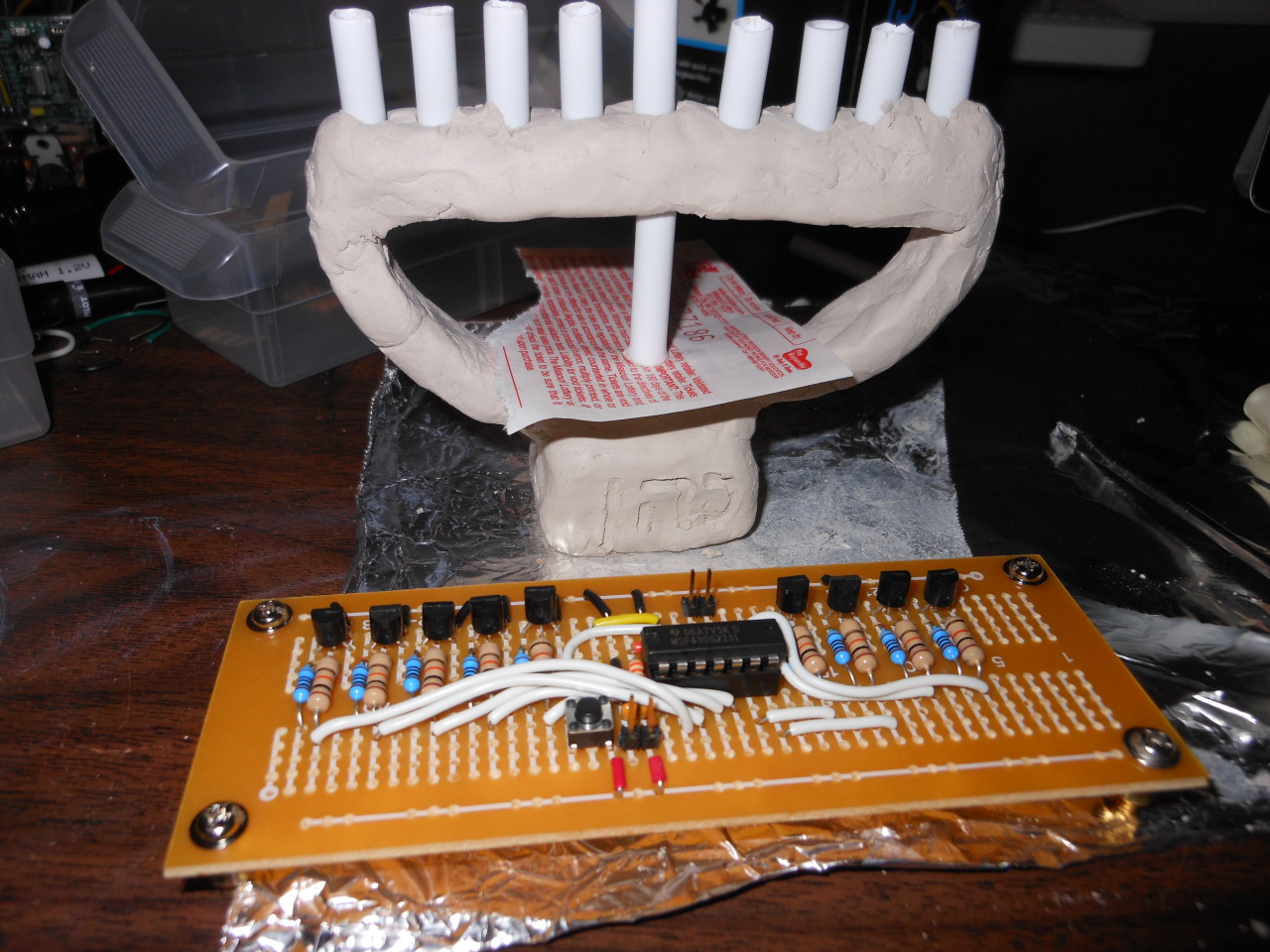

Here's a picture of the circuit board.

Clay menorah lit up

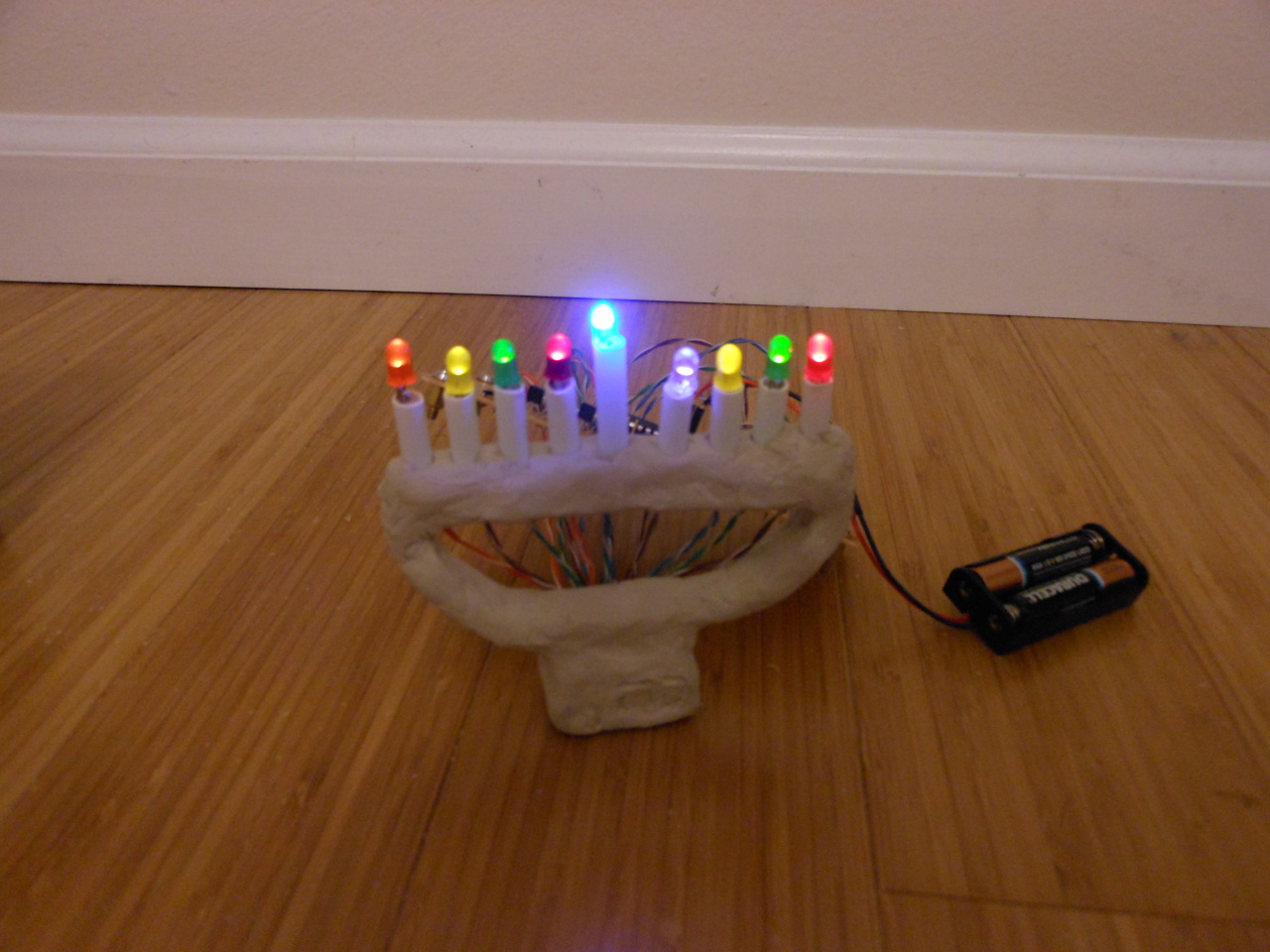

The final product lit up like the 8th day.

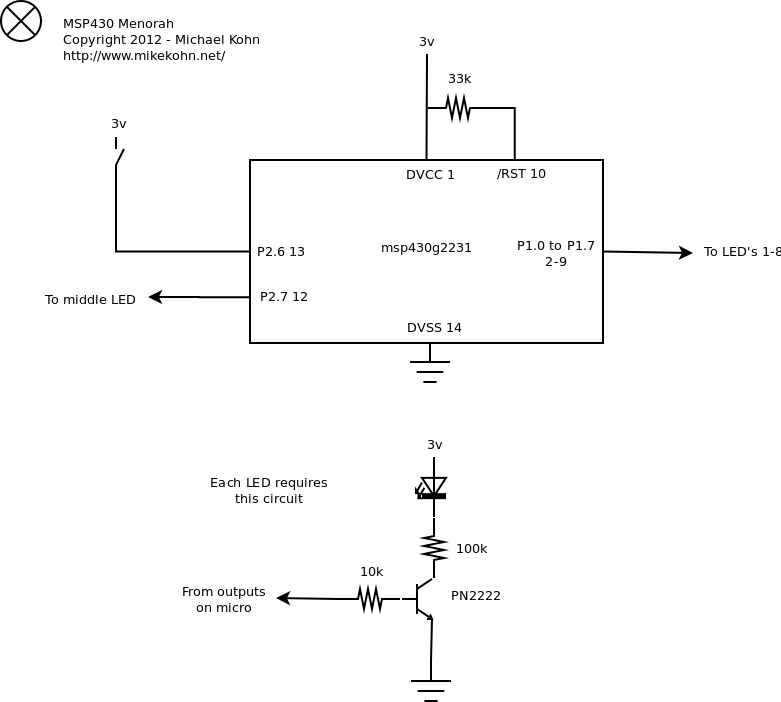

Schematic

Source code
menorah.asm
